JE Labs Full Function Preamp

Phono: 2x 6SL7s, Linestage: 2x 6SN7s and 2x 76s

External choke input power supply with GZ34 as a rectifier

Battery-biased for 6SL7s, precision resistors where applicable

Built for John Grisham of San Jose, CA

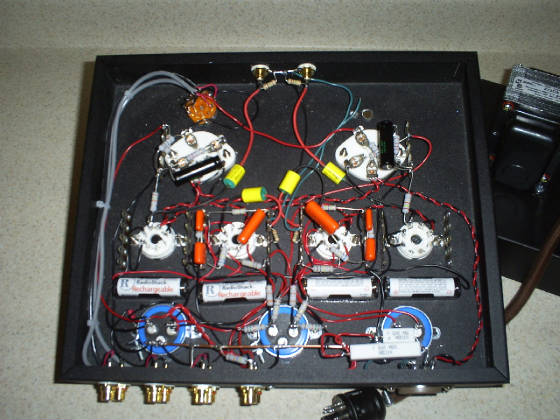

This project was funded by John Grisham (no, he's not a novelist) in San Jose, CA. He wanted one with an external PS. The power supply is basically the same as the one I built for Glenn. It will have choke input and a voltage divider network at the output of the B+ to keep the filament floated above the ground to minimize hum and noise and to keep the heater to cathode voltage on the 6sn7 follower below maximum limit. Below are some pictures that are taken at various stages of the project:
